R1 Rudder Pedals - Damper Kit - User Manual

Modified on Fri, 14 Mar at 11:29 AM

What's in the Box:

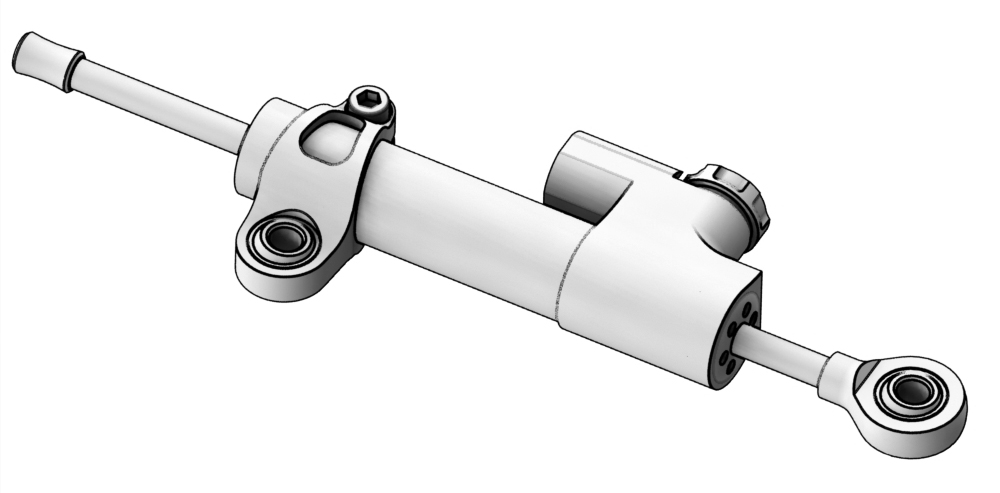

  • 1x Damper

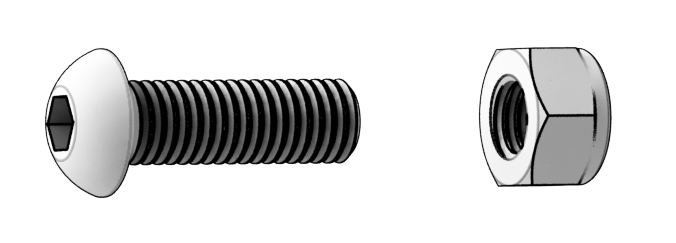

  • 1 x Screw ISO 7380 M8x25 A2
  • 2 x Nut DIN 985 M8 A2

  • 1 x Screw  DIN 912 M8х35 А2
  • 1 x Nut  DIN 934 M8 A2
  • 1 x Washer  DIN 125A 8,4 PA6

Damper installation



Tools required:

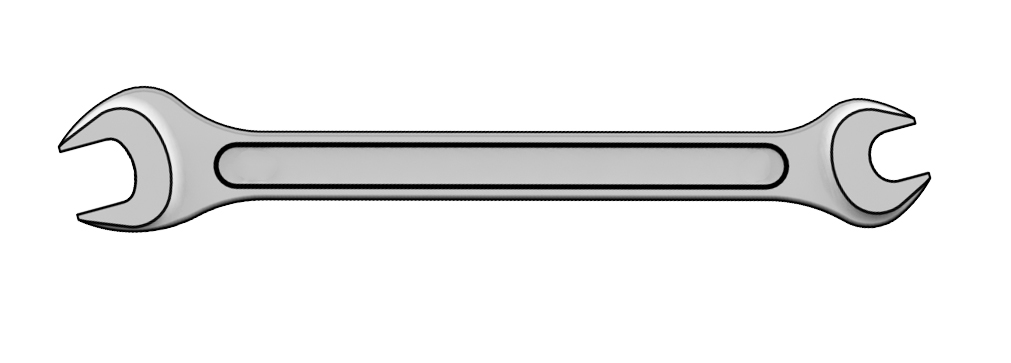

- Wrench 10/13 mm (NOT INCLUDED)

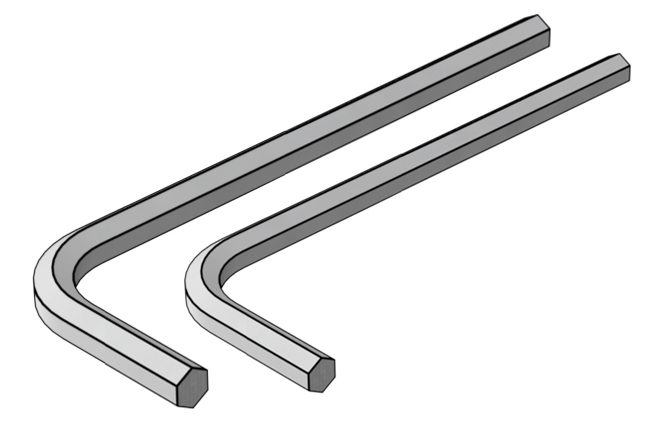

- H6 Hex key (NOT INCLUDED)

- H5 Hex key (NOT INCLUDED)

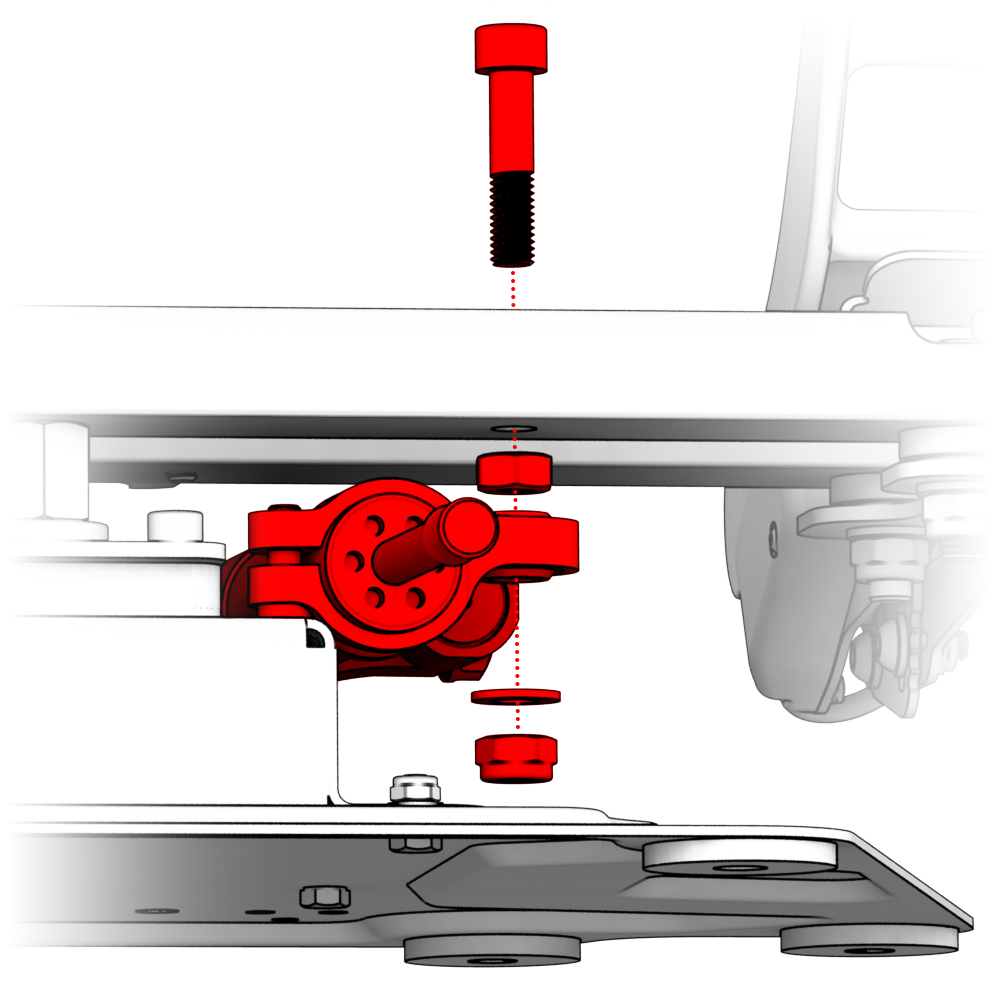

1. Install the damper bracket in the correct position using the highlighted screw.

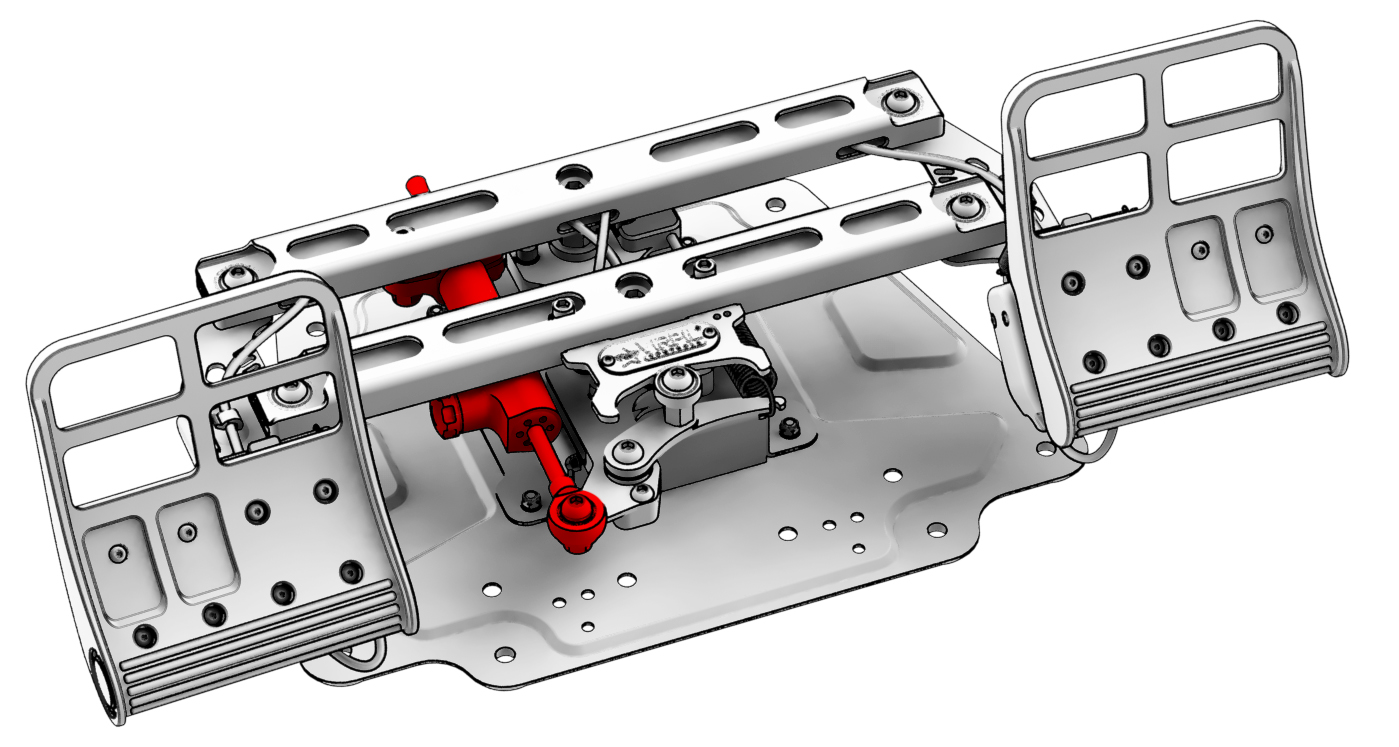

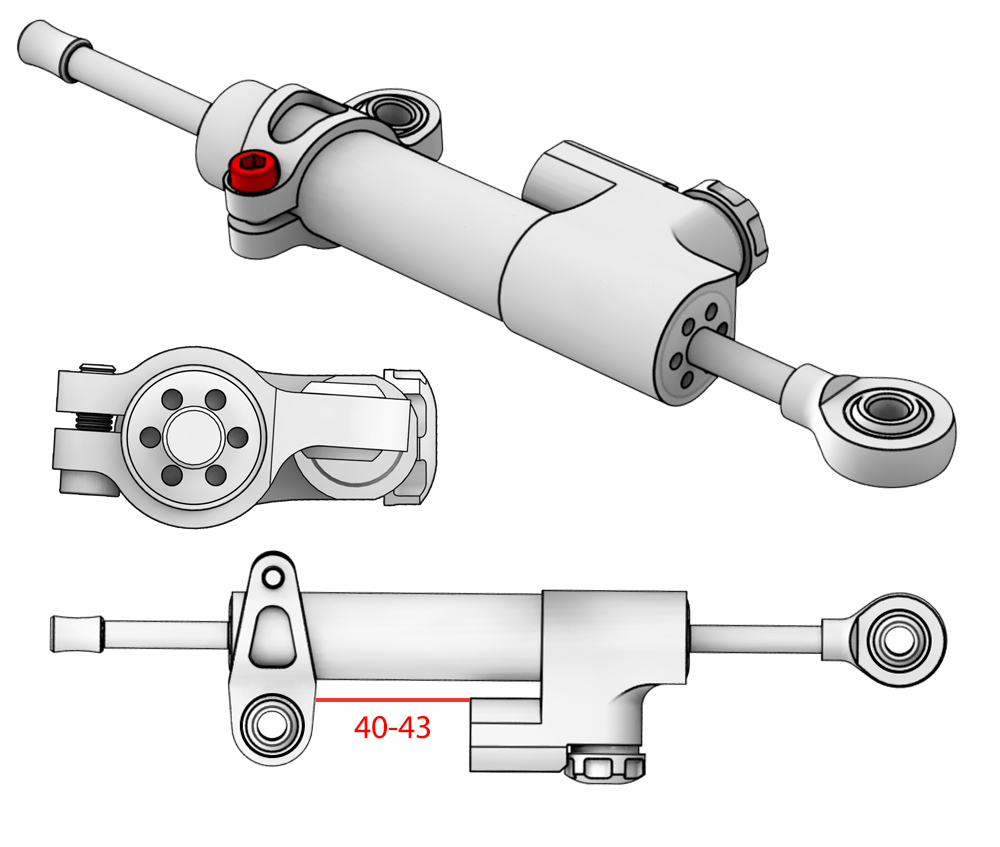

2. Install the damper and secure it with screws and nuts from the kit.

Important! The damper must not limit the pedal travel. In case of discrepancy, go back to point 1 and adjust the position of the bracket.

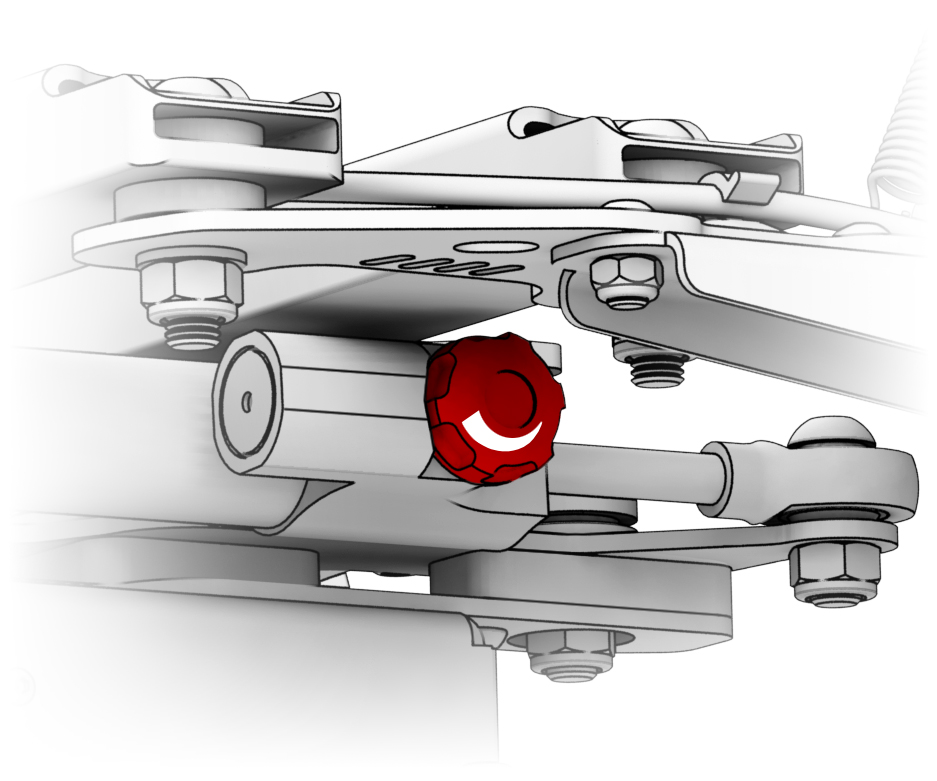

3. Adjust the force (counterclockwise - decrease the force; clockwise - increase the force).
